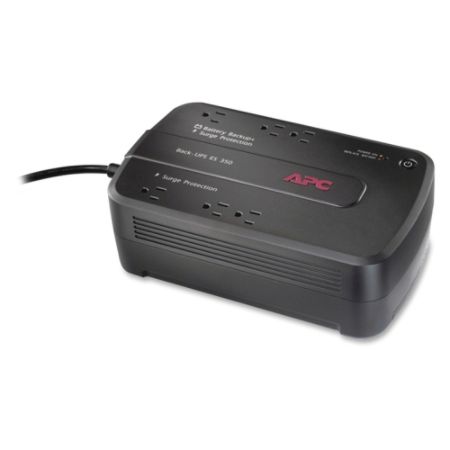

APC® Back-UPS® ES 350VA Battery Backup Item # 277408
Share
-
Email This Page
- Note: You can share Individual Items, entire Shopping Carts, and Shopping Lists.
-
Share this Item
Close
Print
277408
was removed.
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Description
Battery backup helps ensure you don't lose any of the work you spent time on, even in the event of power failure. It gives you the extra time to save your work and start again at a safer time when the power resumes.
- Lets you save your work and power down safely.
- Includes 6 power outlets (3 with battery backup plus surge protection, 3 with surge protection only).
- Also offers fax/phone line protection.
Product Details
| Item # | 277408 |
| OfficeMax # | 21627973 |
| Manufacturer # | U40017 |
| Maximum Battery Recharge Time | 16 Hour |
| Number of Batteries | 1 |
| Product Series | ES |
| Certifications & Standards | CE; C-Tick; cUL Listed; FCC Part 15 Class B; FCC Part 68; NOM; UL 1778; UL 497A; UL 1449; UL 498 |
| Output Voltage | 120 V AC |
| Product Line | Back-UPS |
| average charging time | 8 hours |
| EMI/RFI noise reduction | yes |
| postconsumer recycled content | 0% |
| Eco-conscious | helps save energy |
| brand name | APC |
| UL listed | yes |
| volt-amps | 350 VA |
| Input Connectors | 1 x power NEMA 5-15 |
| Battery Characteristics | Maintenance-free |
| dimensions | 4.7"H x 15"W x 8.9"D |
| Backup/Run Time (Half Load) | 5.60 Minute |
| Dataline Protection | RJ-11 |
| fax/phone line protection | yes |
| total recycled content | 0% |
| Receptacles | 3 x NEMA 5-15R |
| on/off switch | yes |
| mounting hardware included | no |
| hot swappable | Yes |
| Load Capacity (Watt) | 200 W |
| Backup/Run Time (Full Load) | 24 Second |
| coaxial cable line protection | no |
| height | 3.5 in |
| battery type | Sealed Lead Acid |
| protection status indication | yes |
| width | 6.3 in |
| assembly required | No |
| package contents | Back-UPS ES 350VA Desktop UPS; User Manual |
| depth | 11 in |
| Product Name | Back-UPS ES 350VA Desktop UPS |
| manufacturer | American Power Conversion |
| cord length | 6 feet |
| Plug/Connector Type | NEMA 5-15P |
| weight | 8 lb |
| connected equipment warranty | $75,000 |
| Frequency Provided | 60 Hz |
| Input Voltage | 110 V AC |
| Load Capacity (VA) | 350 VA |
| joule rating | 365 joules |
| wattage | 200 watts |
| form factor | Desktop |
| number of outlets | 6 |
| color | black |
| warranty length | 3-year limited |
| Show More ▾ |
Customer Reviews
Rated 4.3 out of 5�by 62
reviewers.
Rated 5 out of 5�by Rosie Great Battery Backup
Excellent Battery Back up for our office we have multiple workstations and each has one in use
February 1, 2016
Rated 5 out of 5�by csdfg Great Product and Customer Service
My original purchase was the BE-350, and Customer Service allowed an upgrade to the BE-550 due to an outlet plug configuration issue. Both of these units are first-rate at what they are designed to do, preventing data loss due to mains power supply inconsistencies and interruptions. They have been an excellent investment for my business.
January 8, 2016
Rated 5 out of 5�by Glowing Excellent Service
Customer service was excellent and I received the product quickly!
December 17, 2015
Rated 5 out of 5�by Curta Great Product
I am very fond of APC products. This one is great, it protects my PC for such a low price!
October 2, 2015
Product Q & A
(2 Qs�:�3 As)
Product Q&A
Ask your questions. Share your answers.
2 answers
What is the operating voltage range? What is the max, and how long can the unit sustain it?
My building is supplied by CoN Edison and the voltage they deliver is sometimes 125v .
Gender:�Male
Age:�45 to 54
3 years, 1 month ago
by
Ray
Manhattan, New York, NY, USA
Answers
Answer:�
Hello Ray,Thank you for your inquiry.
The range for operational voltage is 88-139V. The unit can sustain anything within this range.
Thanks,
2 years, 7 months ago
by
APCProductSupport
Answer:�
TVA---125VGender:�Male
Age:�65 or over
3 years ago
by
uncle
Fayetteville, Tn.
Gender:�Male
Age:�55 to 64
3 years ago
by
art
Hayward, CA, USA
Answers
Answer:�
Thank you for your inquiry.The replacement battery for this unit is an RBC35.
3 years ago
by
APCProductSupport
1 of 1
1 of 1
From the Manufacturer|
Back-UPS Video
Overview
-
Back-UPS BE350G
- Guaranteed protection and battery backup power for your valuable electronics, ensuring they remain safe from dangerous power disturbances
- Stay available and connected by powering critical devices (computers, wireless networking devices, gaming consoles, security systems and other electronics) during a blackout
- Guaranteed protection from surges and spikes caused by storms, lightning, circuit overloads, power cycling, etc.
- 6 total outlets – 3 battery backup, 3 surge only outlets, 2 transformer block spaced
- Periodic battery self-test ensures early detection of a battery that needs to be replaced
- Lifetime $75,000 equipment protection policy for all connected electronics
- ENERGY STAR® certified
Product Features
-
The electronic devices you rely on every day for communication, security, and entertainment such as networking equipment, computers, televisions, security systems, and gaming consoles are at risk of damage and disconnect due to unexpected blackouts, voltage fluctuations, and other power disruptions.
The APC by Schneider Electric Back-UPS BE350G provides instant battery power to your critical electronics when the power goes out, keeping you connected and available both personally and professionally. Additionally, the BE350G UPS (uninterruptible power supply) offers guaranteed surge and lightning protection for attached devices. By connecting your valuable devices, you are ensuring these investments against potentially irreversible damage. When the power goes out, the APC BE350G will power critical devices including home networking equipment; allowing you to maintain your internet connection. This allows you to work productively, avoid the loss of valuable data, and safely shut down equipment. -
Battery Backup Keeps Critical Components Running
The BE350G UPS offers guaranteed backup battery power for your electronic devices. When power is interrupted or fluctuates outside safe levels, the BE350G instantly provides clean battery power to your sensitive electronics. Work safely throughout brief outages or save your data and safely shut down electronics during extended outages. -
Protection from Dangerous Surges and Spikes
The BE350G battery backup features a total of six power outlets, all of which shield your devices against dangerous surges and spikes in voltage. Three of these are UPS battery backup outlets that provide instant power to critical devices like computers and home networking equipment when there is an outage. -
Phone and Network Data Line Surge Protection
In addition to standard power line surge protection, the BE350G battery backup also provides protection from dangerous "backdoor" surges that travel along telephone and network data lines. Just route the phone or network data line through the BE350G UPS to protect your devices from lightning, surges, and spikes. -
ENERGY STAR Certified for Efficiency
The BE350G UPS is ENERGY STAR® certified for its efficient operation and ability to help realize lower energy costs.
Warranty and Equipment Protection Policy
This UPS is covered by a three-year limited warranty. It also comes with a lifetime equipment protection policy of up to $75,000. APC will repair or replace attached equipment that sustains surge-related damage while properly connected to a registered Back-UPS uninterruptible power supply unit.
Package Contents
APC Back-UPS BE350G with 5-foot power cord and user manual.
Back-UPS Comparison
|
|
|
|
|
| APC Back-UPS® BE350G | APC Back-UPS® BE550G | APC Back-UPS® BE650G1 | APC Back-UPS® BE750G | |
|---|---|---|---|---|
| Output | ||||
| Output Capacity | 350 VA / 210 W | 550 VA / 330 W | 650 VA / 390 W | 750 VA / 450 W |
| Output-on utility | 120V, 50 or 60 Hz, +/- 3Hz (auto sensing) | 120V, 50 or 60 Hz, +/- 3Hz (auto sensing) | 120V, 50 or 60 Hz, +/- 3Hz (auto sensing) | 120V, 50 or 60 Hz, +/- 3Hz (auto sensing) |
| Output-on battery | 115V +/-8%, 50 or 60 Hz +/-1 Hz (auto sensing) | 115V +/-8%, 50 or 60 Hz +/-1 Hz (auto sensing) | 115V +/-8%, 50 or 60 Hz +/-1 Hz (auto sensing) | 115V +/-8%, 50 or 60 Hz +/-1 Hz (auto sensing) |
| Output Connections |
6 total NEMA 5-15R: 3 battery & surge 3 surge only |
8 total NEMA 5-15R outlets: 4 battery backup & surge 4 surge protection only |
8 total NEMA 5-15R outlets: 4 battery backup & surge 4 surge protection only |
10 total NEMA 5-15R: 5 battery & surge 5 surge only (incl. 3 Controlled outlets) |
| Waveform Type | Stepped Approximation to Sine Wave | Stepped Approximation to Sine Wave | Stepped Approximation to Sine Wave | Stepped Approximation to Sine Wave |
| Input | ||||
| Input Volt., Freq | 120V, 50 or 60 Hz, +/- 3Hz | 120V, 50 or 60 Hz, +/- 3Hz | 120V, 50 or 60 Hz, +/- 3Hz | 120V, 50 or 60 Hz, +/- 3Hz |
| Input Conn. | 5 ft cord with right angle plug (NEMA 5-15P) | 5 ft cord with right angle plug (NEMA 5-15P) | 6 ft cord with right angle plug (NEMA 5-15P) | 6 ft cord with right angle plug (NEMA 5-15P) |
| Surge Protection | ||||
| AC Power | All outlets protected | All outlets protected | All outlets protected | All outlets protected |
| Data Line | Analog phone line, RJ-11 (Fax, modem, DSL) | Analog phone line, RJ-11 (Fax, modem, DSL) |
Analog phone line, RJ-45 (Fax/Modem/DSL) Network line, RJ-45 (Ethernet 10/100 Base-T) Coax cable (Cable Modem/TV/DSS) |
Analog phone line, RJ-45 (Fax/Modem/DSL) Network line, RJ-45 (Ethernet 10/100 Base-T) Coax cable (Cable Modem/TV/DSS) |
| Physical | ||||
| Unit Dims H x W x D | 3.5” x 6.25” x 11.0” | 3.5“ x 12.0” x 7.0” | 3.54“ x 12.6” x 6.97” | 13.5" x 7.1" x 3.5" |
| Unit Weight | 8.0 lbs | 13.0 lbs | 14.3 lbs | 10.34 lbs |
| Battery | ||||
| Battery Type | Sealed, lead-acid, maintenance-free | Sealed, lead-acid, maintenance-free | Sealed, lead-acid, maintenance-free | |
| External Battery Compatibility | Not compatible | Not compatible | Not compatible | Not compatible |
| Management | ||||
| Alarms | Visual (LED status indicators) and audible alarms | Visual (LED status indicators) and audible alarms | Visual (LED status indicators) and audible alarms | Visual (LED status indicators) and audible alarms |
| Shutdown S/W | none | Compatible with PowerChute Personal Edition (via USB interface) | Compatible with PowerChute Personal Edition (via USB interface) | Compatible with PowerChute Personal Edition (via USB interface) |
| Safety | ||||
| Certification/ Approvals |
FCC Part 15 Class B, FCC Part 68, UL1778, NOM, TUV, UL 497A, UL 498 |
FCC Part 15 Class B, FCC Part 68, UL 1778, TUV |
FCC Part 15 Class B, FCC Part 68, UL1778, TUV |
FCC Part 15 Class B, FCC Part 68, UL1778, NOM, TUV, CSA C22.2 No.107.1, |
Technical Specifications
-
Output
- Output Power Capacity: 200 Watts / 350 VA
- Max Configurable Power: 200 Watts / 350 VA
- Nominal Ouput Voltage: 120V
- Outpout Frequency (sync to mains): 50/60Hz +/- 3Hz
- Topology: Standby
- Waveform Type: Stepped approximation to a sinewave
- Output Connections: (3) NEMA 5-15R (Battery Backup), (3) NEMA 5-15R (Surge Protection)
-
Input
- Nominal Input Voltage: 120V
- Input Frequency: 50/60Hz +/- 3Hz (auto sensing)
- Input Connections: NEMA 5-15P
- Cord Length: 1.52 meters
- Input Voltage Range for Main Operations: 88 - 139V
-
Batteries & Runtime
- Battery Type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
- Typical Recharge Time1 : 16 hour(s)
- RBC Quantity: 1
-
Communications & Management
- Control Panel: LED status display with On Line : On Battery : Replace Battery and Building Wiring Fault
- Audible Alarm: Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
-
Surge Protection & Filtering
- Surge Energy Rating: 365 Joules
- Filtering: Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : meets UL 1449
- Data Line Protection: RJ45 10/100 Base-T Ethernet protection
-
Physical
- Maximum Height: 3.46 in
- Maximum Width: 6.30 in
- Maximum Depth: 11.34 in
- Net Weight: 9.02 lbs
- Shipping Weight: 10.12 lbs
- Shipping Height: 5.04 in
- Shipping Width: 7.99 in
- Shipping Depth: 14.61 in
- Color: Charcoal
-
Conformance
- Regulatory Approvals: cUL Listed, California (CEC) Battery Charger, ENERGY STAR (USA), FCC Part 15 Class B, FCC Part 68, NOM, UL 1778, UL 497A, UL 498
-
Sustainable Offer Status
- RoHS: Compliant
- REACH: Contains no SVCHCs
Images
Documents
-
Document 1 - opens PDF
PDF, 64K, 2 pages
APC BE350G Product Tour
- Battery Backup & Surge Protection Outlets
- Surge Protection Only Outlets
- Circuit Breaker Reset Button
- Building Wiring Fault Indicator
- PowerChute USB Port
- Dataline Surge Protection
- Power Cord
| Image/Features |
|---|
Battery Backup & Surge Protection OutletsThis Back-UPS unit offers six outlets total, three of which provide battery backup, and a 200 Watt / 350 VA output power capacity.
Battery Backup outlets keep important devices running; this prevents electrical damage and maintains your steady work flow. For information on 'Surge Protection Outlets' click this tours 'Surge Protection Only Outlets.' Surge Protection Only OutletsThe BE350G Surge Protection Outlets are recommended for 'non-critical devices', anything that isn't necessary during the event of a power outage, which will be shielded from sudden voltage surges that can destroy sensitive electronic equipment.
Additionally, the BE350G also provides protection from dangerous "backdoor" surges that travel along telephone and network data lines. Just route the phone or network data line through the BE350G to protect your devices from lightning, surges and spikes. |
Circuit Breaker Reset ButtonA circuit breaker reset button provides easy recovery from circuit overloads protecting your fuse box and electronics from electrical damage.
Building Wiring Fault IndicatorA red light shines indicating a building wiring fault.
PowerChute USB PortAuto-Shutdown Software: APC PowerChute Personal Edition power and energy management software is a free download at http://www.apc.com/tools/download/index.cfm.
PowerChute prevents data corruption by automatically saving files and shutting down your system in an extended power outage or low-battery condition. PowerChute monitors and displays energy usage and reduces costs via customized energy management planning. Connect the included USB cable to your computer to easily use the software. Dataline Surge ProtectionProtects your network connection in case of surges.
Power CordThe BE350G's has a 5 foot long power cord.
|
Click to Start
- 1 The time to recharge to 90% of full battery capacity following a discharge to shutdown using a load rated for 1/2 the full load rating of the UPS.
